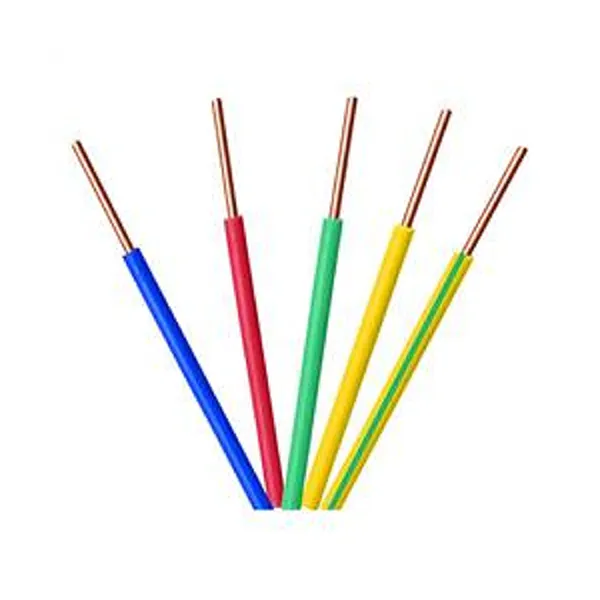

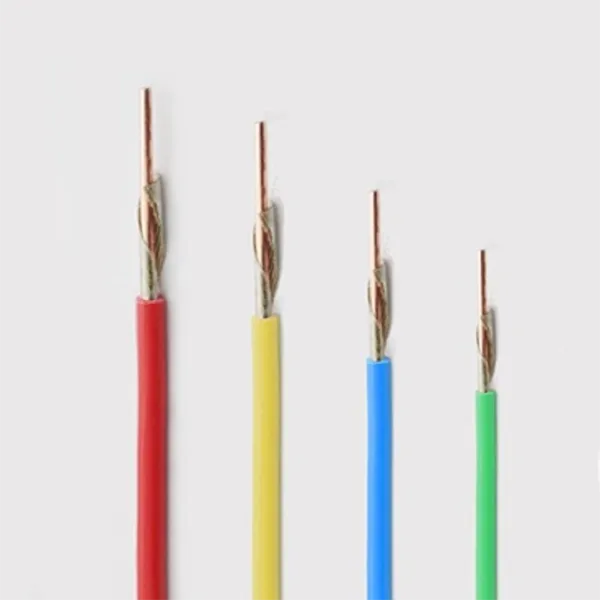

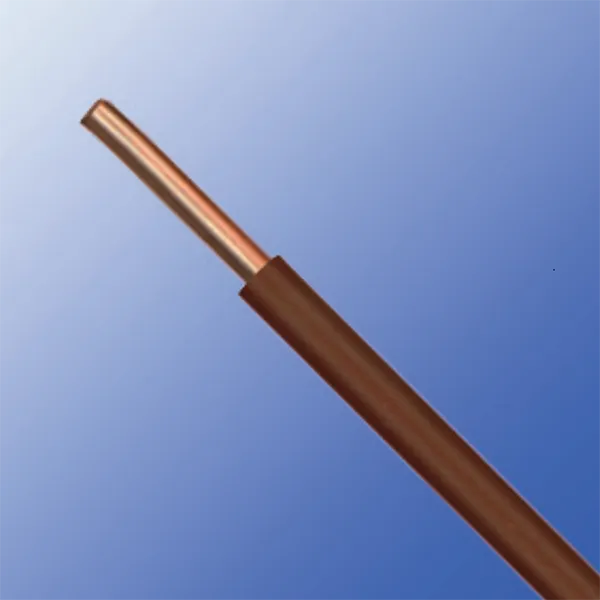

Beida IEC 60227 Kabel PVC Inti Tunggal kasusun saka konduktor tembaga T1R lan lapisan insulasi PVC tanpa timbal, cocog karo standar IEC, standar GB, standar Inggris, lan sapiturute. Kabel kasebut disertifikasi CE lan nduweni sifat fisik listrik lan mekanik sing apik banget. Gumantung karo syarat pelanggan, kabel kasebut ditindakake IEC 60332-1 tes panyebaran nyala vertikal tunggal utawa tes panyebaran nyala IEC 60332-3 (kategori A, B, C, D).
|
Jinis |
Konduktor |
Isolasi |
Karakteristik Listrik |
|||
|
Area Nominal |
Struktur Konduktor |
Ketebalan Isolasi |
Sakabèhé Dhiameter |
Resistance konduktor ing 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Maks |
Ω;km |
|
|
60227IEC05 60227IEC05(BV) |
0.5 |
1/0.80 |
0.6 |
1.9 |
2.3 |
39.0 |
|
0.75 |
1/0.97 |
0.6 |
2.1 |
2.5 |
26.0 |
|
|
1 |
1/1.13 |
0.6 |
2.2 |
2.7 |
19.50 |
|
|
60227IEC06 60227IEC06(RV) |
0.5 |
16/0.20 |
0.6 |
2.1 |
2.5 |
39.00 |
|
0.75 |
24/0.20 |
0.6 |
2.2 |
2.7 |
26.00 |
|
|
1 |
32/0.20 |
0.6 |
2.4 |
2.8 |
19.50 |
|
|
Jinis |
Konduktor |
Konduktor Isolasi |
Karakteristik Listrik |
|||
|
Area Nominal |
Struktur Konduktor |
Ketebalan Isolasi |
Sakabèhé Dhiameter |
Resistance konduktor ing 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Maks |
Ω;km |
|
|

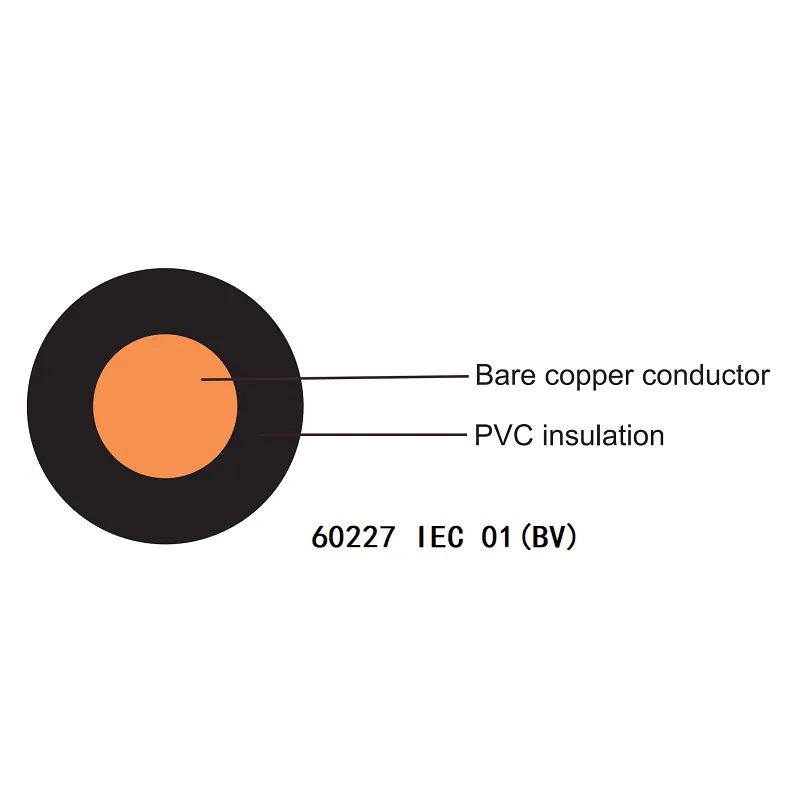

60227IEC01 60227IEC01(BV) |
1.5 |
1/1.38 |
0.7 |
2.6 |
3.2 |
12.1 |
|
2.5 |
1/1.78 |
0.8 |
3.2 |
3.9 |
7.41 |
|
|
4 |
1/2.25 |
0.8 |
3.6 |
4.4 |
4.61 |
|
|
6 |
1/2.76 |
0.8 |
4.1 |
5 |
3.08 |
|
|
1.5 |
7/0.52 |
0.7 |
2.7 |
3.3 |
12.1 |
|
|
2.5 |
7/0.67 |
0.8 |
3.3 |
4 |
7.41 |
|
|
4 |
7/0.84 |
0.8 |
3.8 |
4.6 |
4.61 |
|
|
6 |
7/1.03 |
0.8 |
4.3 |
5.2 |
3.08 |
|
|
10 |
7/1.32 |
1.0 |
5.6 |
6.7 |
1.83 |
|
|
16 |
7/1.67 |
1 |
6.4 |
7.8 |
1.15 |
|
|
25 |
7/2.10 |
1.2 |
8.1 |
9.7 |
0.727 |
|
|
35 |
7/2.47 |
1.2 |
9 |
10.9 |
0.524 |
|
|
50 |
19/1.75 |
1.4 |
10.6 |
12.8 |
0.387 |
|
|
70 |
19/2.10 |
1.4 |
12.1 |
14.6 |
0.268 |
|
|
95 |
19/2.48 |
1.6 |
14.1 |
17.1 |
0.193 |
|
|
120 |
37/2.00 |
1.6 |
15.6 |
18.8 |
0.153 |
|
|
150 |
37/2.22 |
1.8 |
17.3 |
20.9 |
0.124 |
|
|
185 |
37/2.48 |
2 |
19.3 |
23.3 |
0.0991 |
|
|
240 |
61/2.22 |
2.2 |
22 |
26.6 |
0.0754 |
|
|
60227IEC02 60227IEC02(RV) |
1.5 |
30/0.24 |
0.7 |
2.8 |
3.4 |
13.3 |
|
2.5 |
49/0.24 |
0.8 |
3.4 |
4.1 |
7.98 |
|
|
4 |
56/0.29 |
0.8 |
3.9 |
4.8 |
4.95 |
|
|
6 |
83/0.29 |
0.8 |
4.4 |
5.3 |
3.30 |
|
|
10 |
74/0.40 |
1.0 |
5.7 |
6.8 |
1.91 |
|
|
16 |
117/0.40 |
1 |
6.7 |
8.1 |
1.21 |
|
|
25 |
182/0.40 |
1.2 |
8.4 |
10.2 |
0.78 |
|
|
35 |
256/0.40 |
1.2 |
9.7 |
11.7 |
0.554 |
|
|
50 |
367/0.40 |
1.4 |
11.5 |
13.9 |
0.386 |
|
|
70 |
320/0.51 |
1.4 |
13.2 |
16 |
0.272 |
|
|
95 |
423/0.51 |
1.6 |
15.1 |
18.2 |
0.206 |
|
|
120 |
541/0.51 |
1.6 |
16.7 |
20.2 |
0.161 |
|
|
150 |
675/0.51 |
1.8 |
18.6 |
22.5 |
0.129 |
|
|
185 |
822/0.51 |
2 |
20.6 |
24.9 |
0.106 |
|
|
240 |
1088/0.51 |
2.2 |
23.5 |
28.4 |
0.0801 |
|
|
Jinis |
Konduktor |
Konduktor Isolasi |
Karakteristik Listrik |
|||
|
Area Nominal |
Struktur Konduktor |
Ketebalan Isolasi |
Sakabèhé Dhiameter |
Resistance konduktor ing 20 ℃ Max |
||
|
(mm) |
||||||
|
mm |
No./mm |
mm |
Min |
Maks |
Ω;km |
|
|
BVR |
2.5 |
19/0.40 |
0.8 |
- |
4.1 |
7.41 |
|
4 |
19/0.51 |
0.8 |
- |
4.8 |
4.61 |
|
|
6 |
19/0.63 |
0.8 |
- |
5.3 |
3.08 |
|
|
10 |
49/0.51 |
1.0 |
- |
7.3 |
1.83 |
|
|
16 |
49/0.63 |
1.0 |
- |
8.6 |
1.15 |
|
|
25 |
117/0.51 |
1.2 |
- |
10.2 |
0.727 |
|
|
35 |
163/0.51 |
1.2 |
- |
11.7 |
0.524 |
|
|
50 |
147/0.63 |
1.4 |
- |
13.9 |
0.387 |
|
|
70 |
209/0.63 |
1.4 |
- |
16 |
0.268 |
|
|
95 |
294/0.63 |
1.6 |
- |
18.2 |
0.193 |
|
|
120 |
369/0.63 |
1.6 |
- |
20.2 |
0.153 |
|
|
150 |
456/0.63 |
1.8 |
- |
22.5 |
0.124 |
|
|
185 |
570/0.63 |
2.0 |
- |
24.9 |
0.0991 |
|
450/750V: 60227 IEC 01, 60227 IEC 01 (BV), 60227 IEC 02, 60227 IEC 02 (RV), BVR
300/500V: 60227 IEC 05, 60227 IEC 05（BV），60227 IEC 06、60227 IEC 06（RV）
Tes voltase:
2500V: 60227 IEC 01, 60227 IEC 01 (BV), 60227 IEC 02, 60227 IEC 02 (RV), BVR
2000V: 60227 IEC 05, 60227 IEC 05（BV），60227 IEC 06,60227 IEC 06（RV）
suhu operasi: -5°C nganti +70°C
radius mlengkung:
12,5 x Ø: 60227 IEC 02, 60227 IEC 02（RV）, 60227 IEC 06,60227 IEC 06（RV）,BVR
15 x Ø: 60227 IEC 01, 60227 IEC 01（BV）、60227 IEC 05,60227 IEC 05（BV）
suhu short-circuit: +160 ºC
Kinerja tahan api: tes panyebaran nyala vertikal kanggo konduktor tunggal lan tes panyebaran nyala vertikal kanggo konduktor utawa kabel sing dipasang kanthi vertikal (Kelas A, B, C, D), sing kudu tundhuk karo standar IEC 60332, GB / T 19666, GB / T 18380 lan nyukupi syarat pelanggan.
Kinerja geni: 750°C suwene 90 menit, sesuai karo standar IEC 60331, GB/T 19666, GB/T 19216

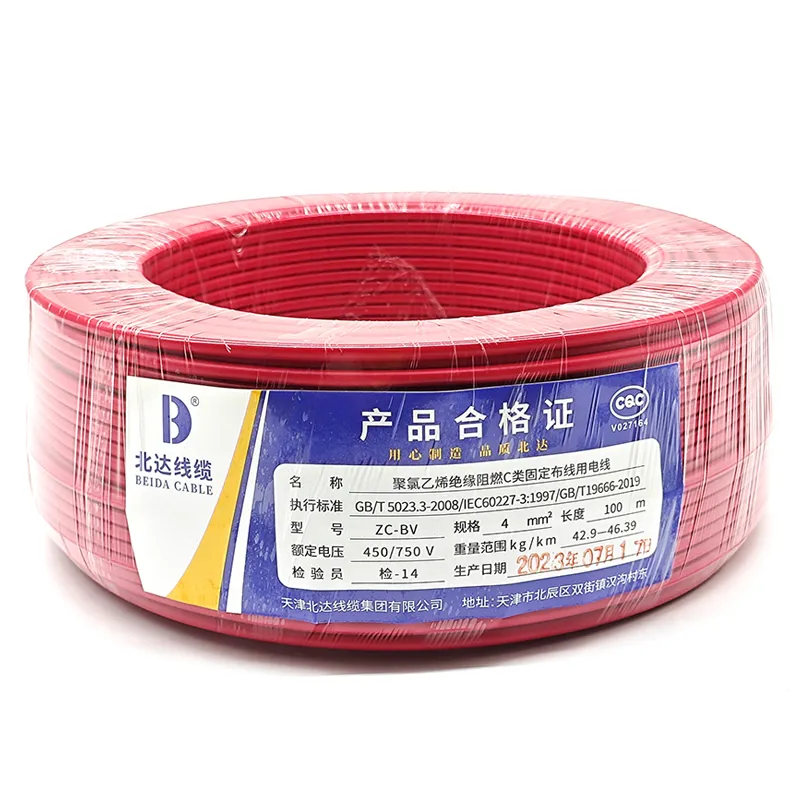

Detail Paket
Jumlah lan syarat tartamtu gumantung sampeyan mutusake, rega bisa dirembug.
Pelabuhan: Pelabuhan Tianjin Mode transportasi: segara, udara, ekspres.
